Function and features

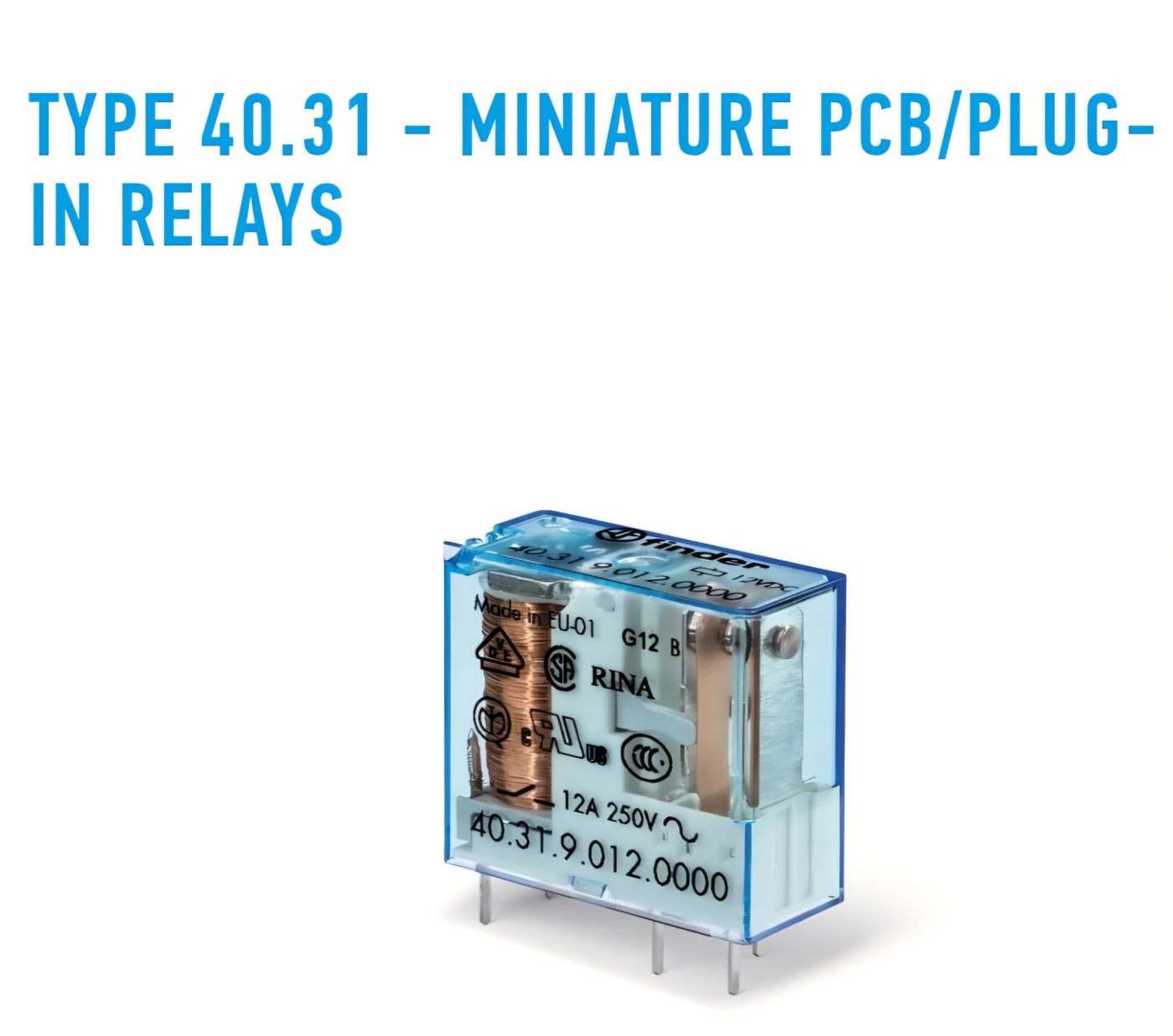

Type 40.31 is a miniature relays 1 CO 10 A, 3.5 mm pin pitch for printed circuit boards, and plug-in with 95 Series sockets.
Features include:
• Pin length 3.5 mm for PCB • Pin length 5.3 mm for plug-in • DC coil (650 mW or 500 mW • Variant with cadmium-free contacts -8 mm, 6 kV (1.2/50us) insulation between coil and contacts
• Compliance with glow wire test according to EN 60335-1
• For use with 95 Series sockets with push-in. screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
• Protection category: RT ll- flux proof (Standard, and RT Ill - washable (Special version)
